BOP-Configurator

Overview

BOP-Configurator is a specialised, yet simple to use, software tool for designing, calculating and displaying Blowout Preventer (BOP) stack configuration space-outs. It enables toolpushers, drilling supervisors and engineers to plan and verify BOP stack-up and space-out arrangements for both platform and subsea drilling operations. This version is tailored for surface BOP stacks on jack-ups.

Key Capabilities

• Surface BOP Stack Design: Simple, intuitive configuration and design
• LP/HP Riser Configuration: Low and high-pressure riser design
• Space-Out Calculations: Precise stack-up calculations and spacing
• Platform & Subsea Wells: Support for multiple well configurations

Features

• Visual BOP stack configuration interface
• Comprehensive component library with specifications
• Automatic calculation of critical dimensions
• Professional schematic generation and export
• Project management with save/load functionality
• Space-out checking and verification tools

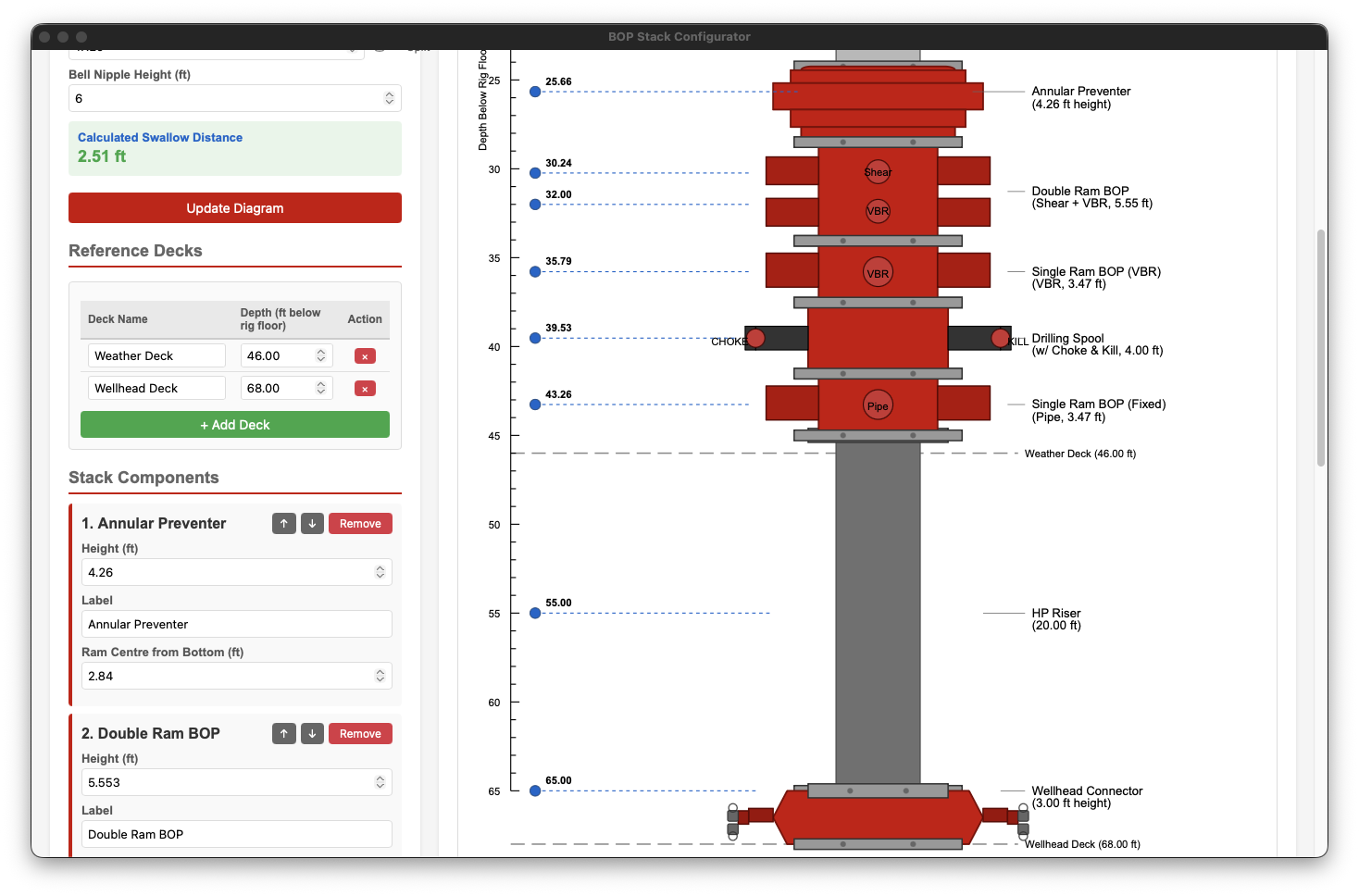

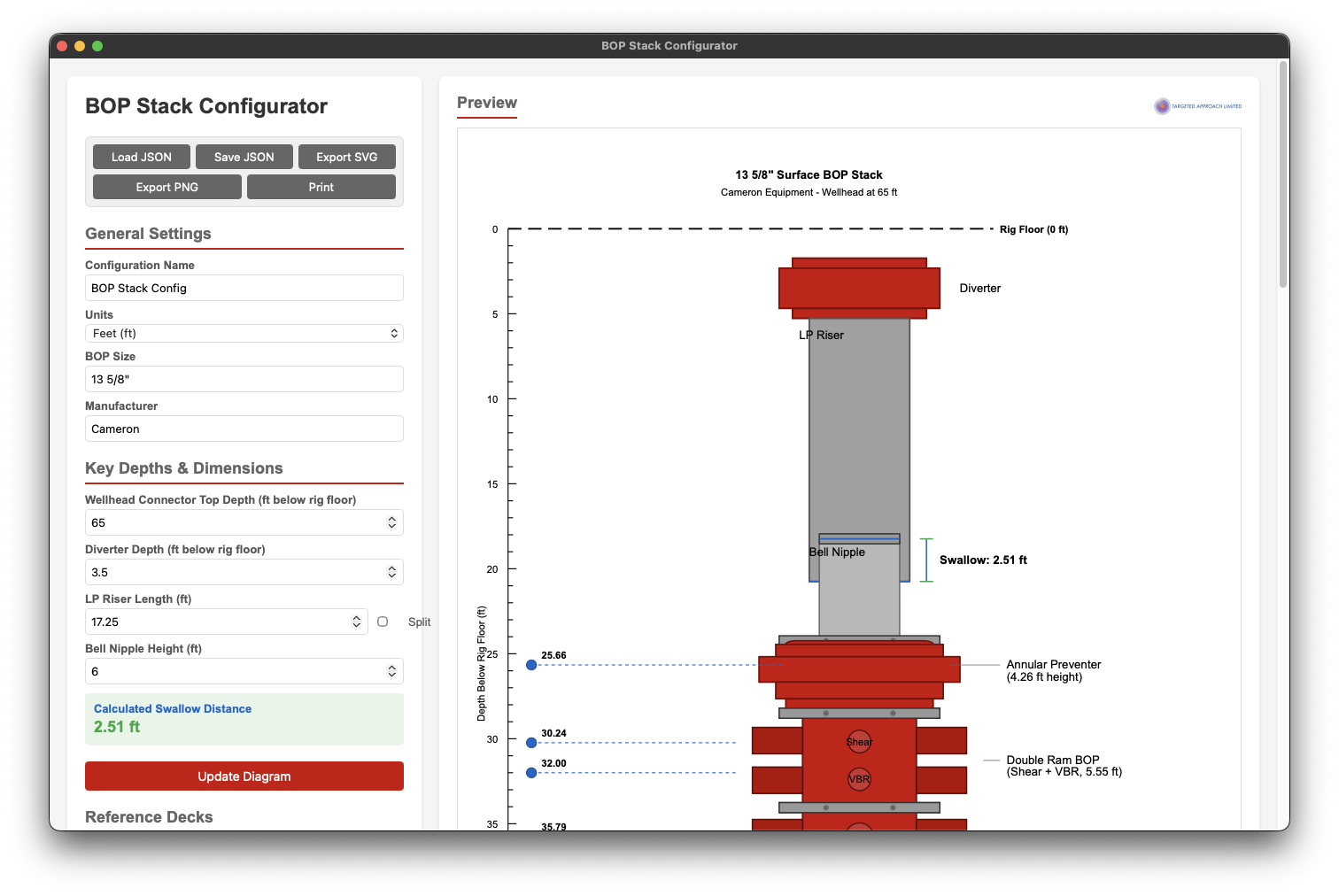

Screenshots

Get BOP-Configurator

Try BOP-Configurator free for 7 days, then purchase with a one-time payment.
