Geomechanics Suite

Overview

The Geomechanics Suite takes typical (or user-defined) basin modelling parameters, combined with wellbore trajectory (planned or actual) and real data and gives a number of methods of modelling and viewing borehole stresses and rock-stability. These tools provide solid calculations with detailed reports and visualisations.

Models

Casing Cement Calculator

Comprehensive casing and liner cementing calculations with multi-section support and directional survey integration.

• Interactive Mud Weight Window: View current drilling window and adjust parameters to observe effect of angle changes at depth

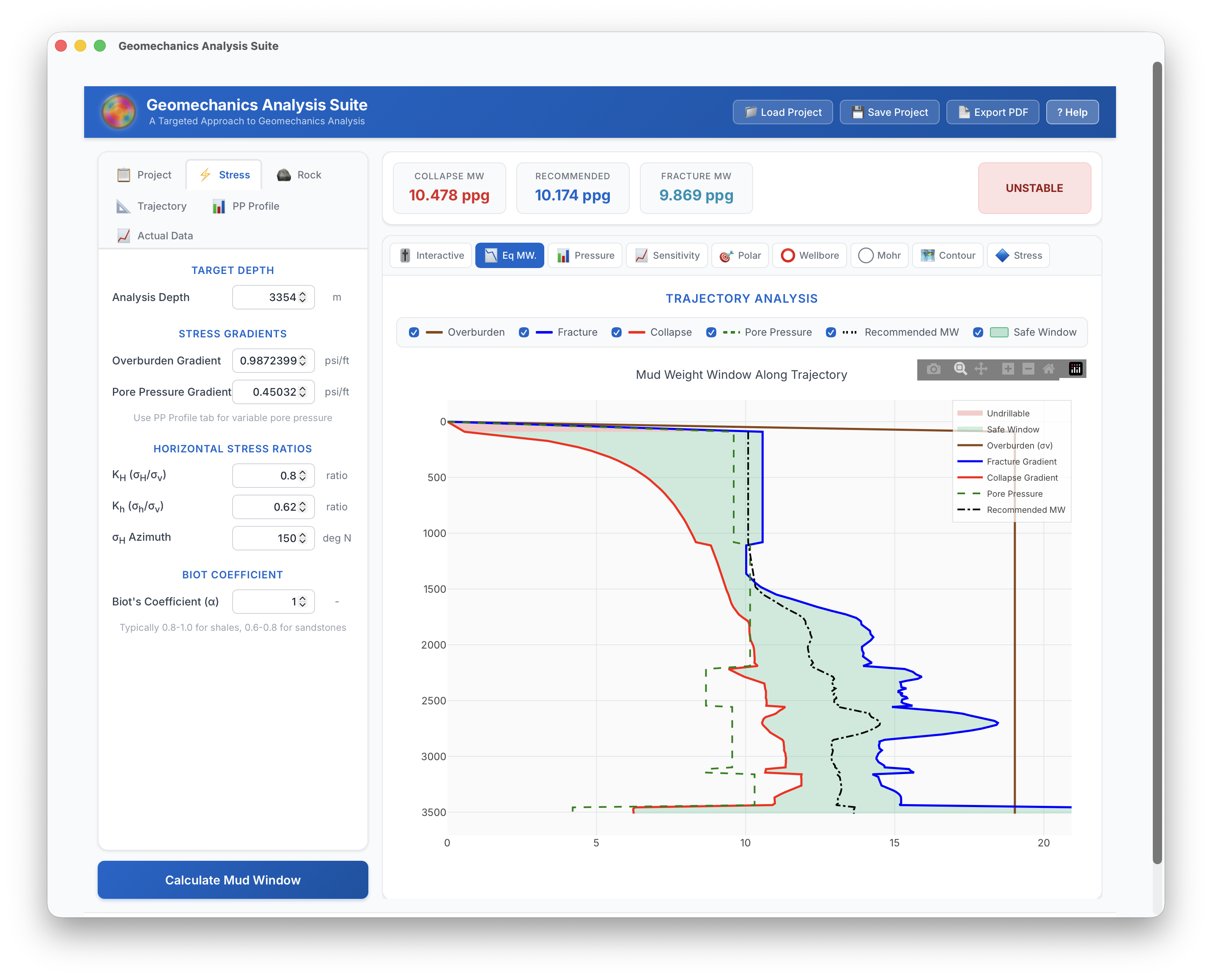

• Trajectory Analysis: View the Stress parameters as Mud Weight Equivalents, safe drilling window and recommended mud weight as a graph against vertical depth

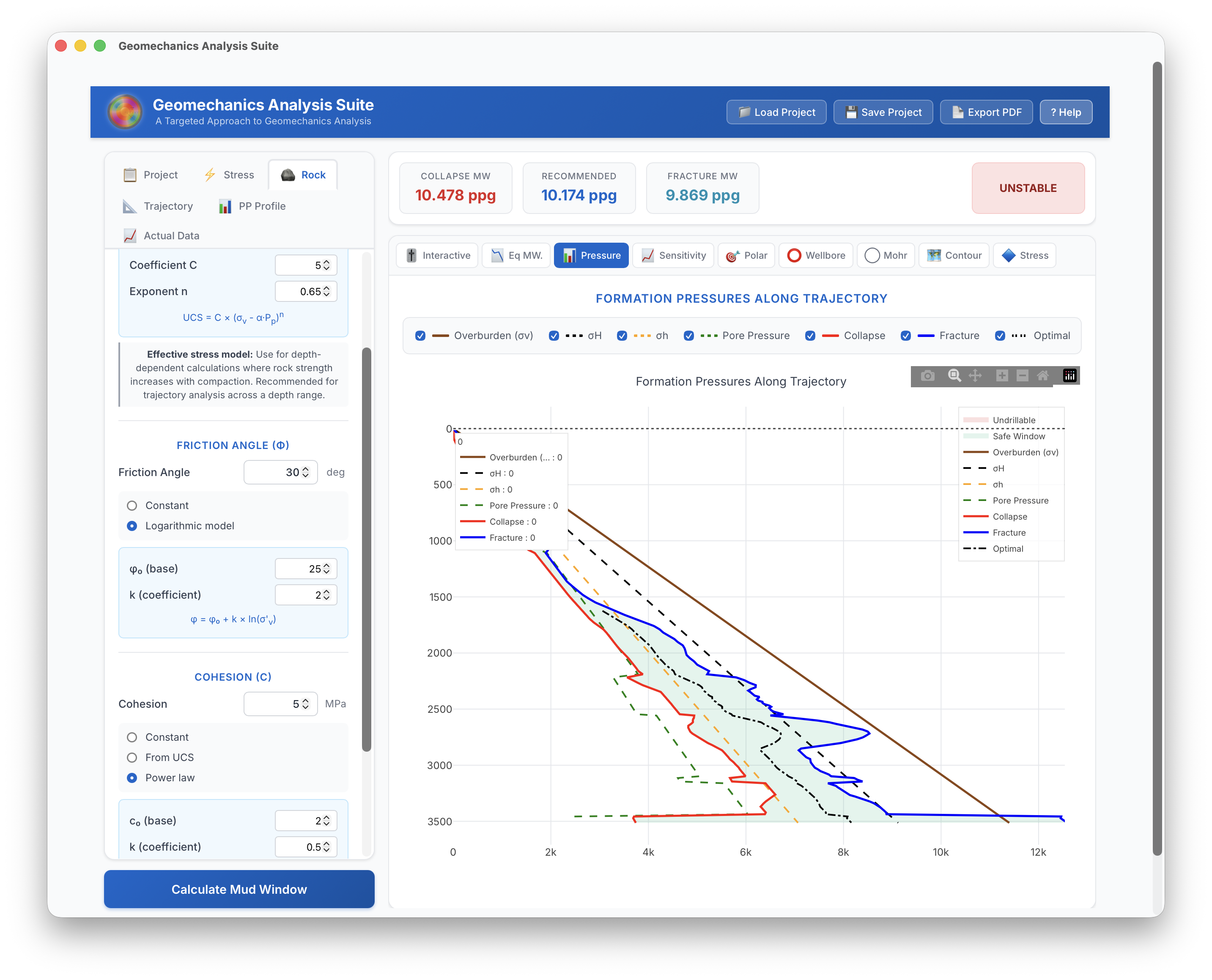

• Formation Pressure Trajectory: View the Stress parameters as Pressures, optimal pressure window as a graph against vertical depth
• Azimuthal Sensitivity: 360 degree view of wellbore stresses with current and proposed azimuths and their effects

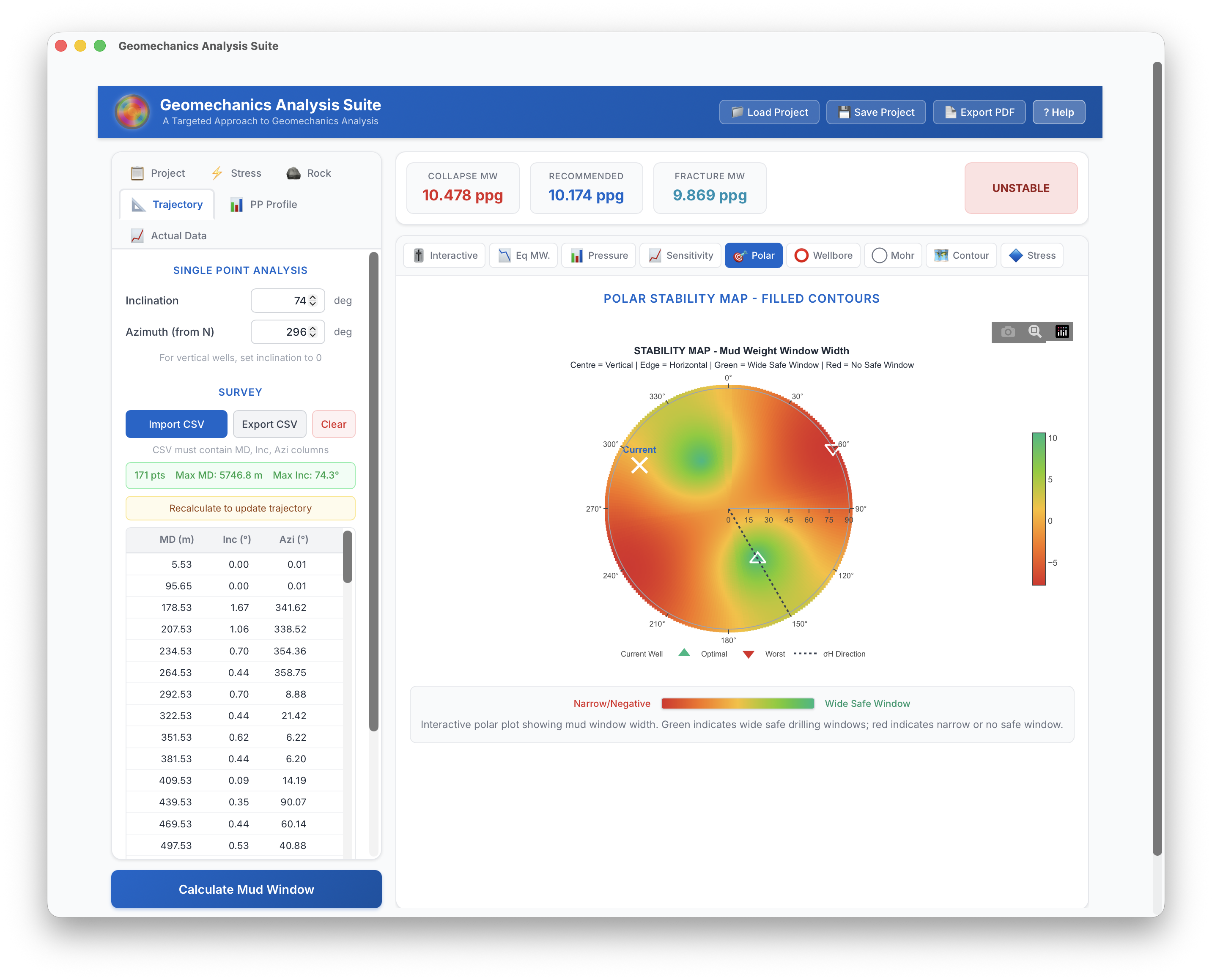

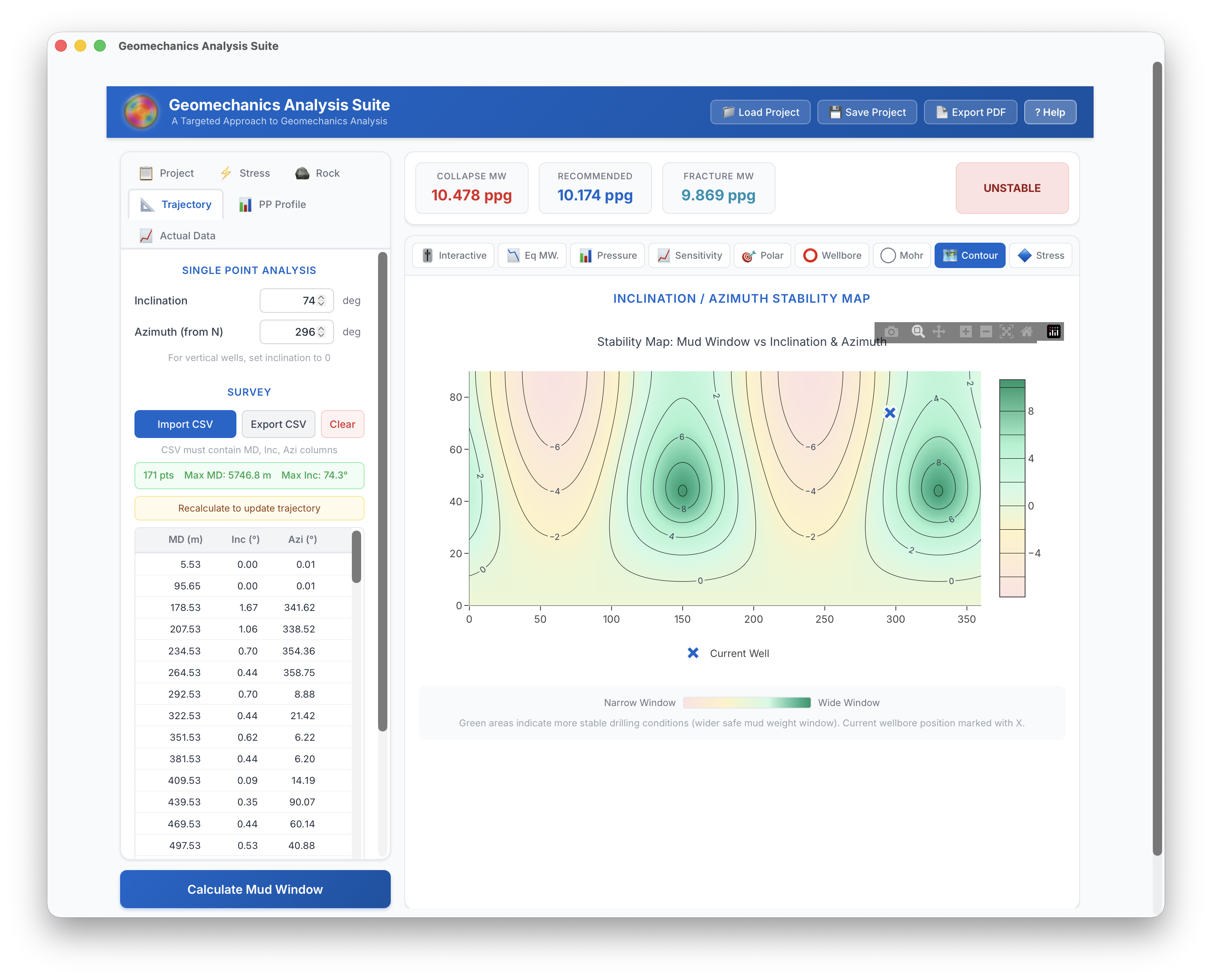

• Polar Stability Diagram: Stability Rose-plot showing current wellbore inclination/azimuth with visual representation of mud weight window.

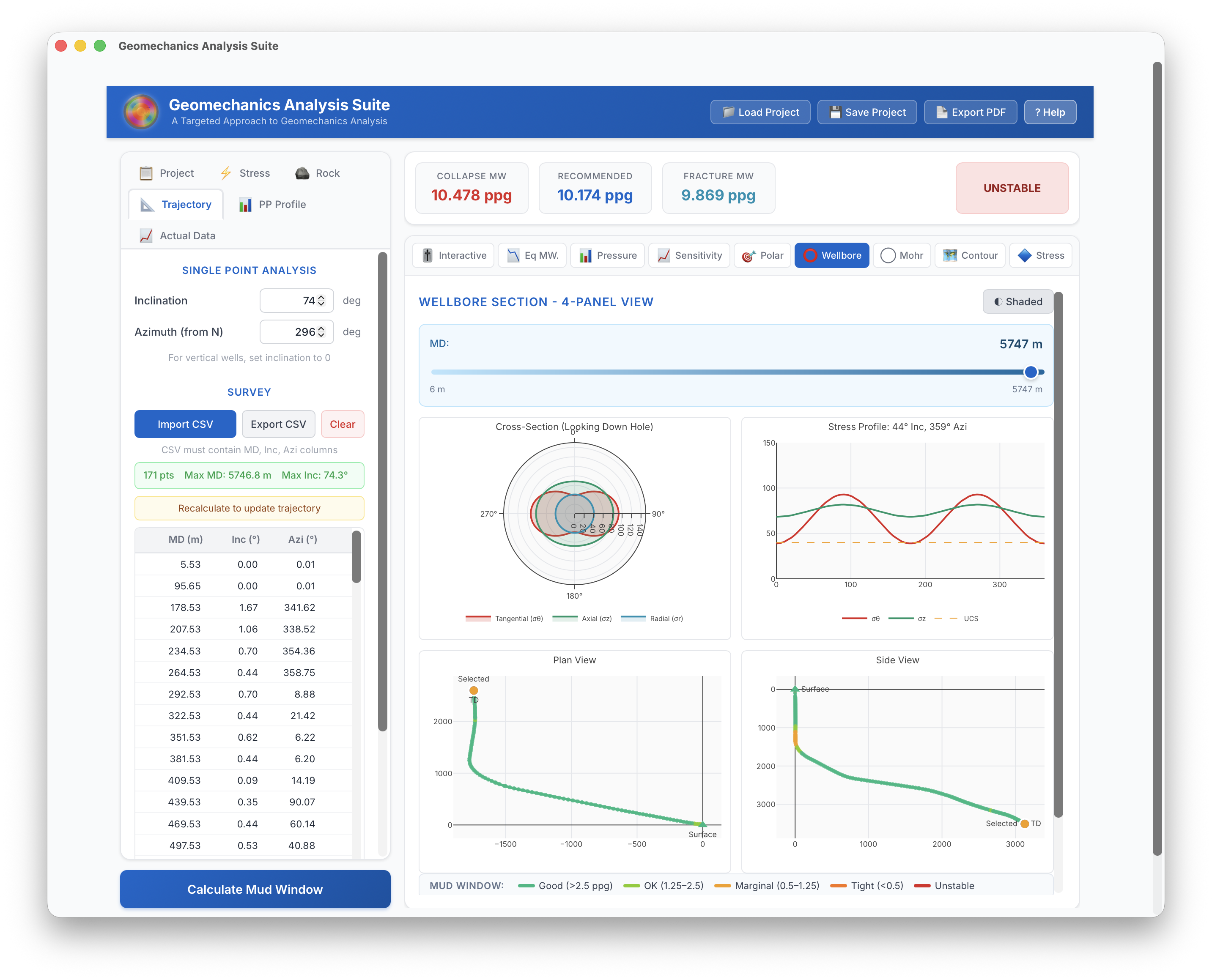

• Wellbore Section (4 panel view): Interactive Borehole cross section, 360 degree stress profile and plan-view/side view plots showing potential problematic areas along trajectory

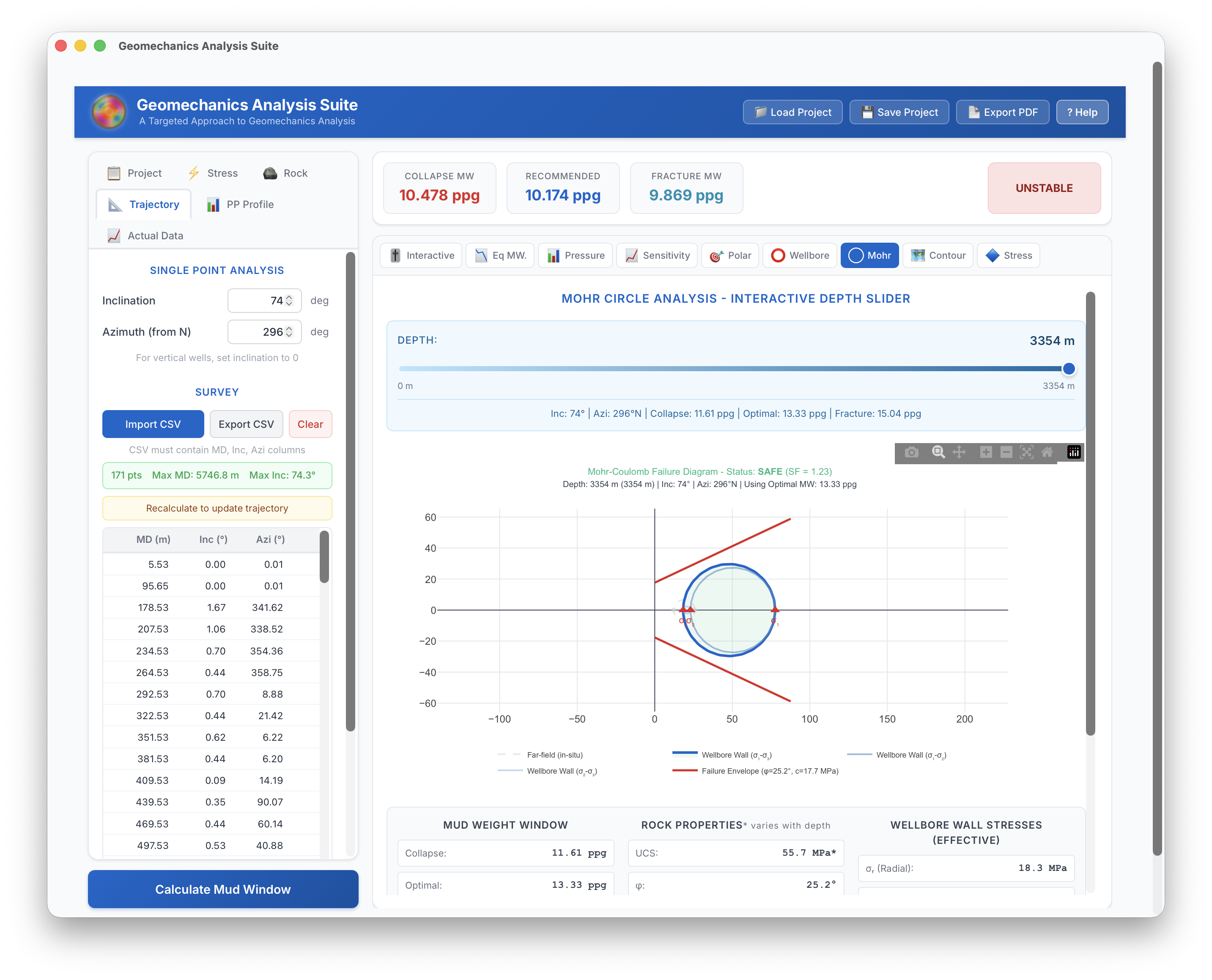

• Mohr-Coulomb Circle: Failure envelope giving representation of whether the rock-strength at the borehole wall is overcome by the stress combinations through the point of interest
• PDF Reports: Professional reports with schematic diagrams from all calculations

Key Features

• Save and load job data for repeat operations
• Export professional reports
• Offline capability - work anywhere without internet
• Calculations with industry-standard formulae
• Interchangeable Unit-sets (select mix of units on-the-fly)
• Visual representation of wellbore trajectory
• User-friendly interface designed for field operations

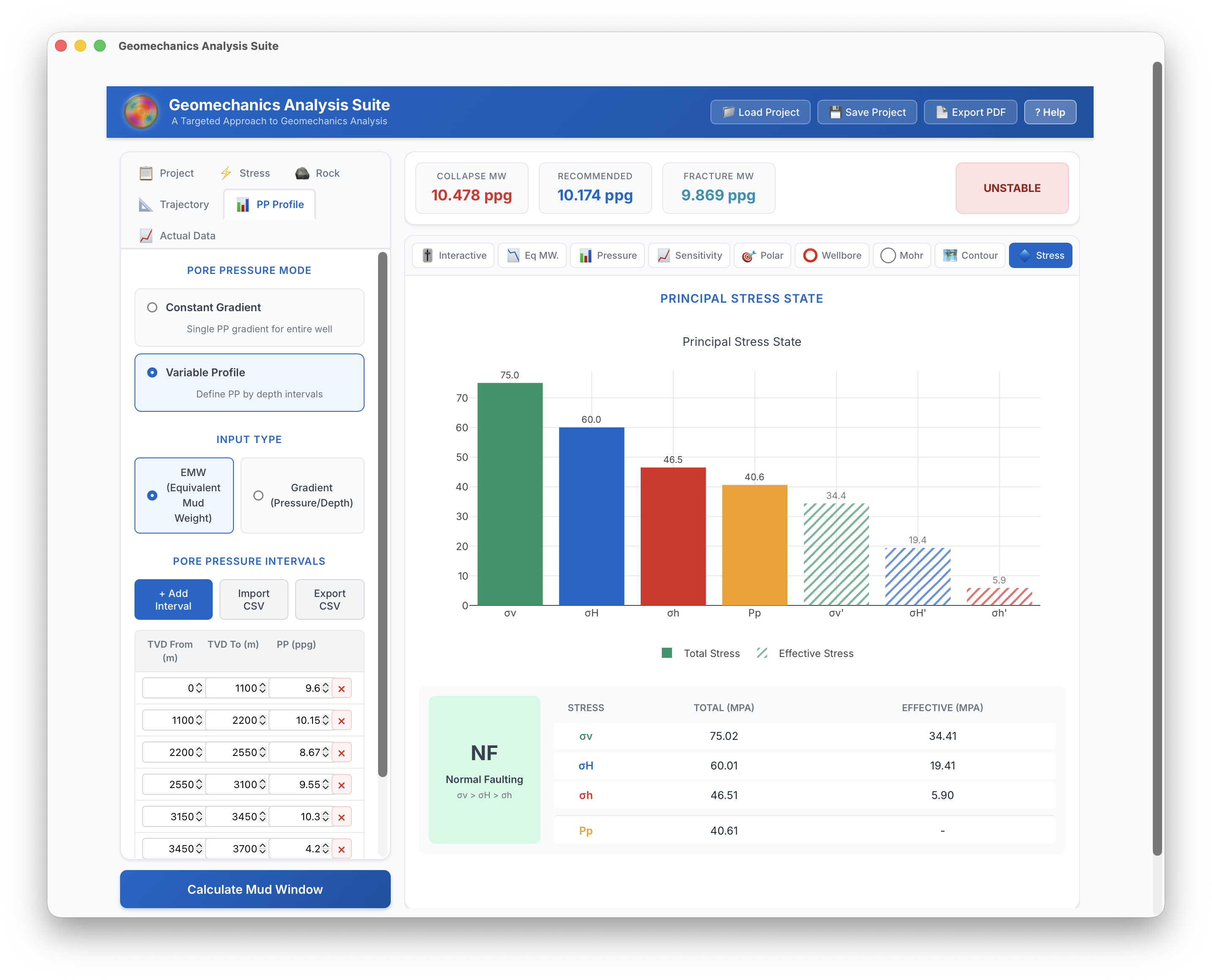

Screenshots

Get Geomechanics Suite

Try Geomechanics Suite free for 7 days, then purchase with a one-time payment.
